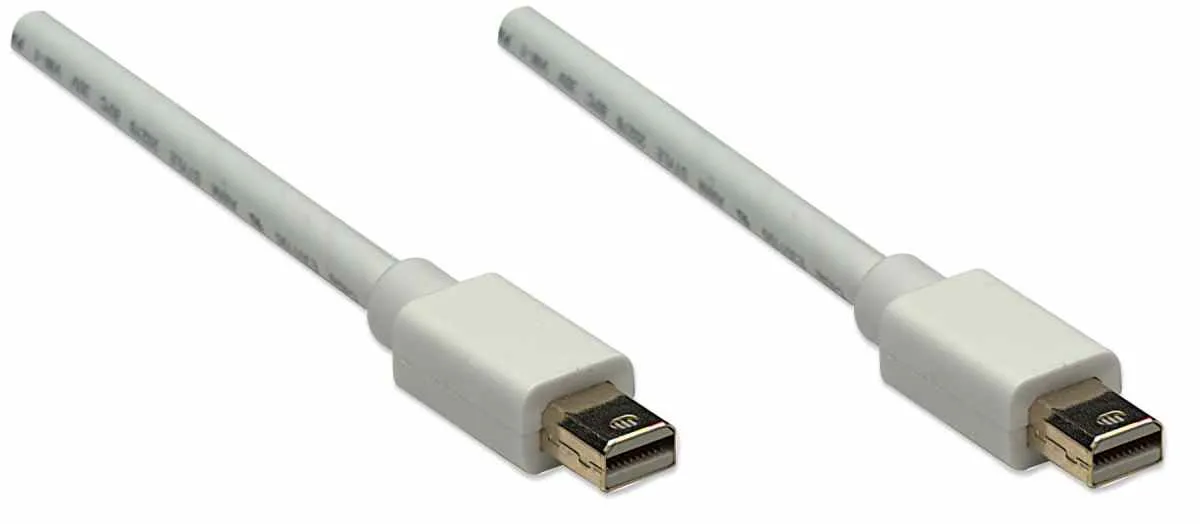

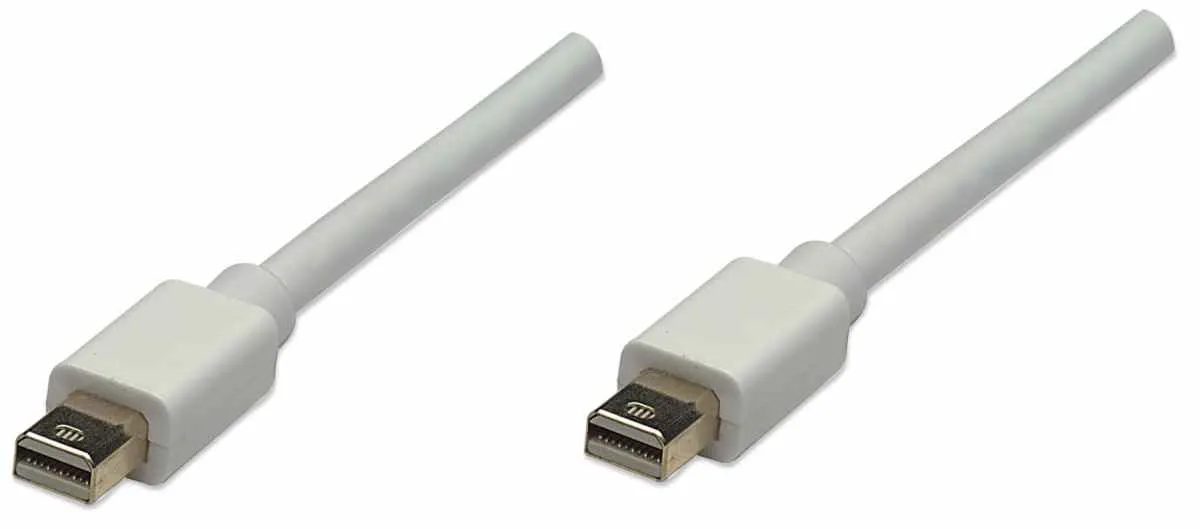

• Mini DisplayPort 20-pin male to Mini DisplayPort 20-pin male with strain relief boots
• Delivers high-bandwidth, bi-directional, 14.8 Gbps, digital audio/visual signals from source to display — up to 4K@60Hz
• 4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep Color

High-definition performance for personal computing

Manhattan Mini DisplayPort cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 14.8 Gbps bandwidth, Deep Color and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

• Mini DisplayPort 20-pin male to Mini DisplayPort 20-pin male with strain relief boots
• Delivers high-bandwidth, bi-directional, 14.8 Gbps, digital audio/visual signals from source to display — up to 4K@60Hz
• 4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep Color
• Dolby and DTS-HD 2/5.1/7.1/8 uncompressed surround sound audio pass-through
• Fully shielded to reduce EMI and other interference sources
• Supports the HDCP and DPCP content protection standards
• Lifetime Warranty

• UL 20276

• DisplayPort 1.2

• ISO 9002

  General

• Bandwidth: 14.8 Gbps at 600 MHz

• Meets or exceeds existing DisplayPort standards

• Length: 2 m (6 ft.)

  Connectors

• Mini DisplayPort 20-pin male (2)

• Gold plated

• Gold-plated contacts

• ABS boots, built-in PVC strain relief

  Cable

• 32 AWG conductors

• Shielding: aluminum and Mylar braid

• Withstanding voltage: 300 VDC

• Insulation resistance: 5 MΩ

• Contact resistance: 10 Ohms

• Current rating: 0.5 A DC

• Conductive resistance: 5 Ohms

• Thermal plastic casing

  Operating Environment

• Operation Temperature: 0 - 50°C (32 - 122°F)

• Storage Temperature: -25 - 85°C (-13 - 185°F)

• Humidity (noncondensing): 0 - 96%

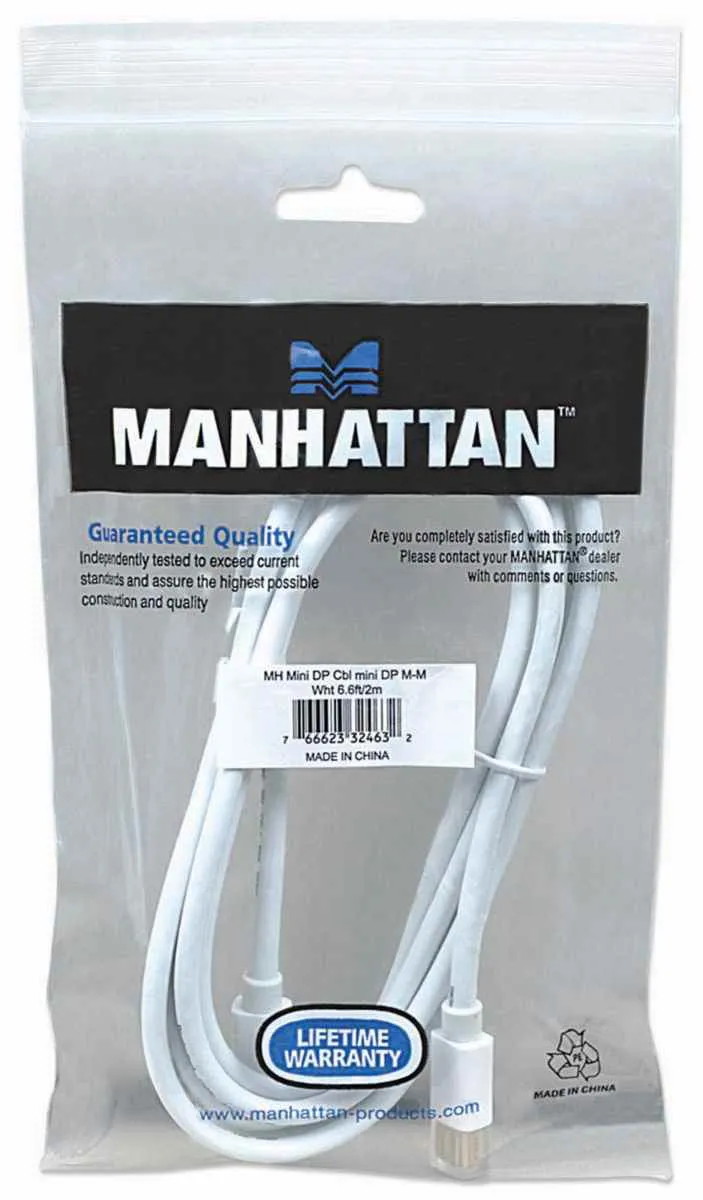

  Package Contents

• Mini DisplayPort Cable

• Datasheet
